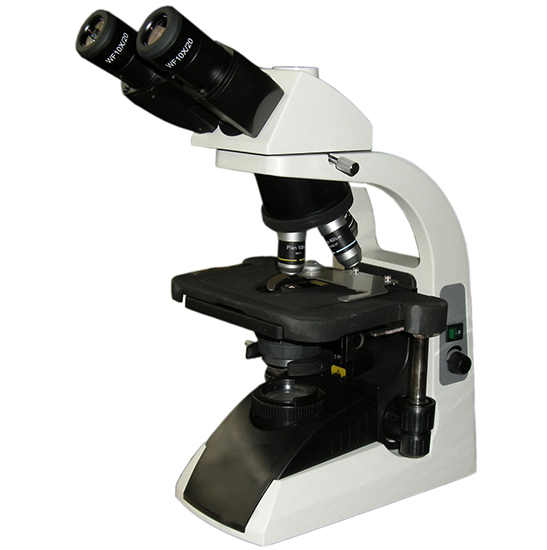

BS-2070T Trinocular Biological Microscope
BS-2070T Trinocular Biological Microscope
BS-2070T Trinocular Biological Microscope
BS-2070T Trinocular Biological Microscope
BS-2070T Trinocular Biological Microscope
BS-2070T Trinocular Biological Microscope

BS-2070T Trinocular Biological Microscope

Introduction

BS-2070 series microscopes are high level microscopes which are specially designed for college education, medical and laboratory research. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.

Details

Model:BS-2070T
Magnification:40x-1000x
Eyepiece:WF10x
Objective:4×, 10×, 40×, 100×
Illumination:Halogen Lamp
Stage:230×150mm
Viewing Head:Trinocular
Condenser:NA1.25
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

BS-2070 series microscopes are high level microscopes which are specially designed for college education, medical and laboratory research. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.

Features

  1. Excellent image quality with infinite optical system.
  2. Comfortable operating with ergonomic design.
  3. Perfect illumination with sliding-in centerable condenser, easy to replace phase contrast and dark field condenser.
  4. Advanced design of mechanical stage structure prevents the scratches of users.

Application

BS-2070 series microscopes are ideal instruments in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Specification

Item

Specification

BS-2070B

BS-2070T

Optical System

Infinite Optical System

Viewing Head

Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm



Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm



Eyepiece

WF10×/20mm

WF15×/16mm

Objective

Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×

Infinite Plan Achromatic Objective 20×, 60×

Nosepiece

Backward Quadruple Nosepiece

Backward Quintuple Nosepiece

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm

Stage

Rackless stage, Size 230×150mm, Cross Travel 78×54mm, Low-positioned X/Y Coaxial Control Knob, Can hold two slides

Condenser

Abbe Condenser NA1.25 with Aperture Diaphragm

Illumination

12V/20W Halogen Lamp, Brightness Adjustable

1W S-LED illumination, Brightness Adjustable

Optional

Photo Attachment, Video Attachment, Polarization Set, Phase Contrast Kit, Kohler Illumination

Package

1pc/carton, 38cm*26cm*51cm, 9kg

Note: ●Standard Outfit, ○Optional
